A spout cap is the small but critical component attached to spout pouches and refill packs that controls dispensing, resealing, and user interaction. It enables lighter packaging, better portability, and tailored dispensing behavior.
As a professional spout cap manufacturer, Sanrun would like to introduce the applications of our spout cap and make recommendations for different situations.

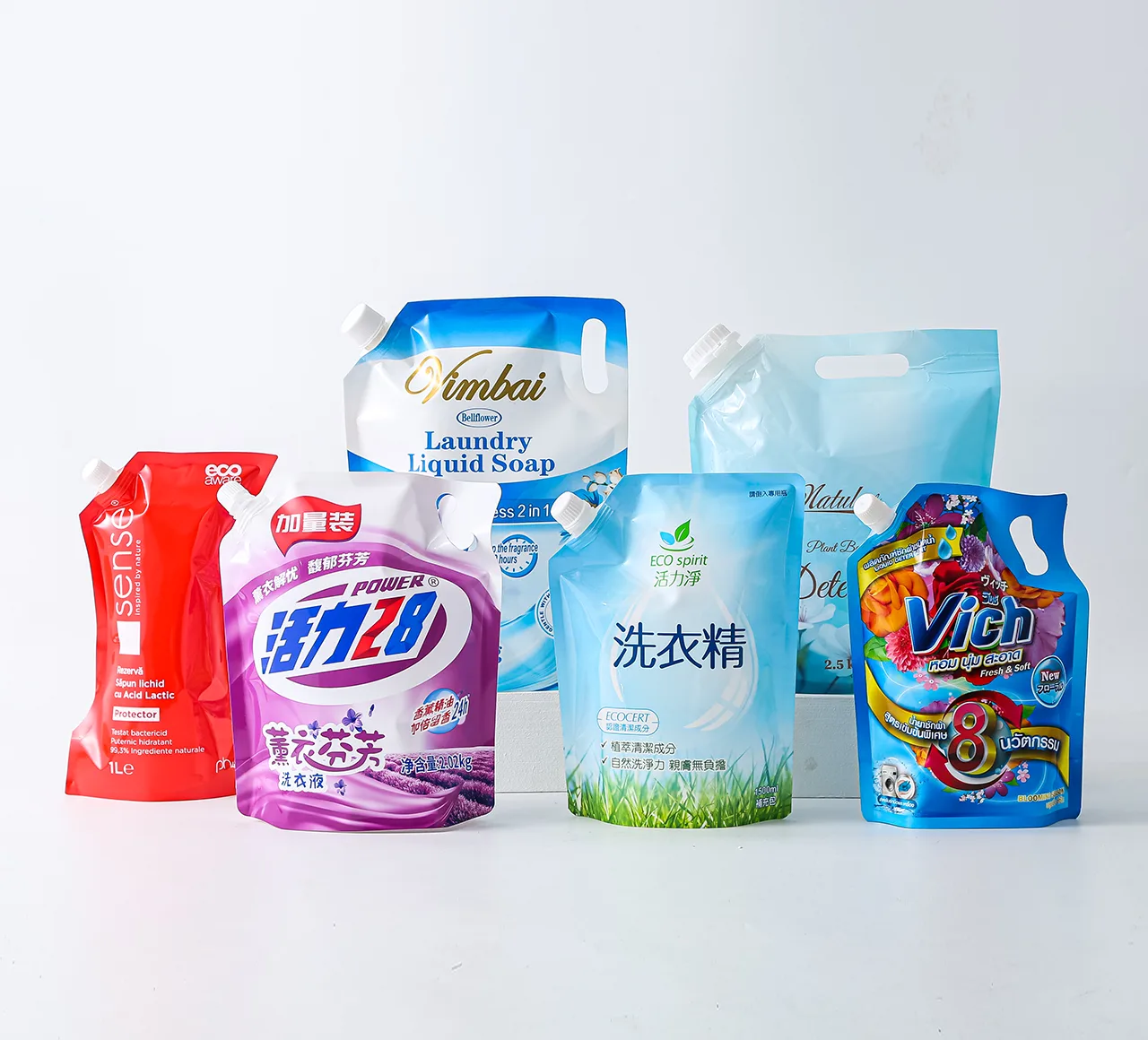

Personal Care Packaging
Typical products: shampoo, body wash, liquid soap, refill pouches, etc.
Advantages
- Controlled dispensing: Reduces over-pouring and product waste.
- Leak prevention: Precise thread/form-fit and controlled torque reduce transport leakage.
- Refill compatibility: Enables eco-friendly refills and subscription models.
- Chemical resistance: PP/HDPE options are compatible with surfactants and fragrances.
Recommended sizes
| Personal Care Packaging Types | Recommended Diameter | Reason |
|---|---|---|
| Travel-size products | 8.6 mm | Small flow control; compact form factor |
| Standard shampoo / body wash | 10 mm | Balanced flow and consumer control |
| Refill pouches (1–5 L) | 16 mm | Faster dispensing; reduces fill time and user frustration |
Design notes: prioritize thread concentricity and automated-torque tuning. For thicker gels, consider internal ribs or anti-clog geometries.

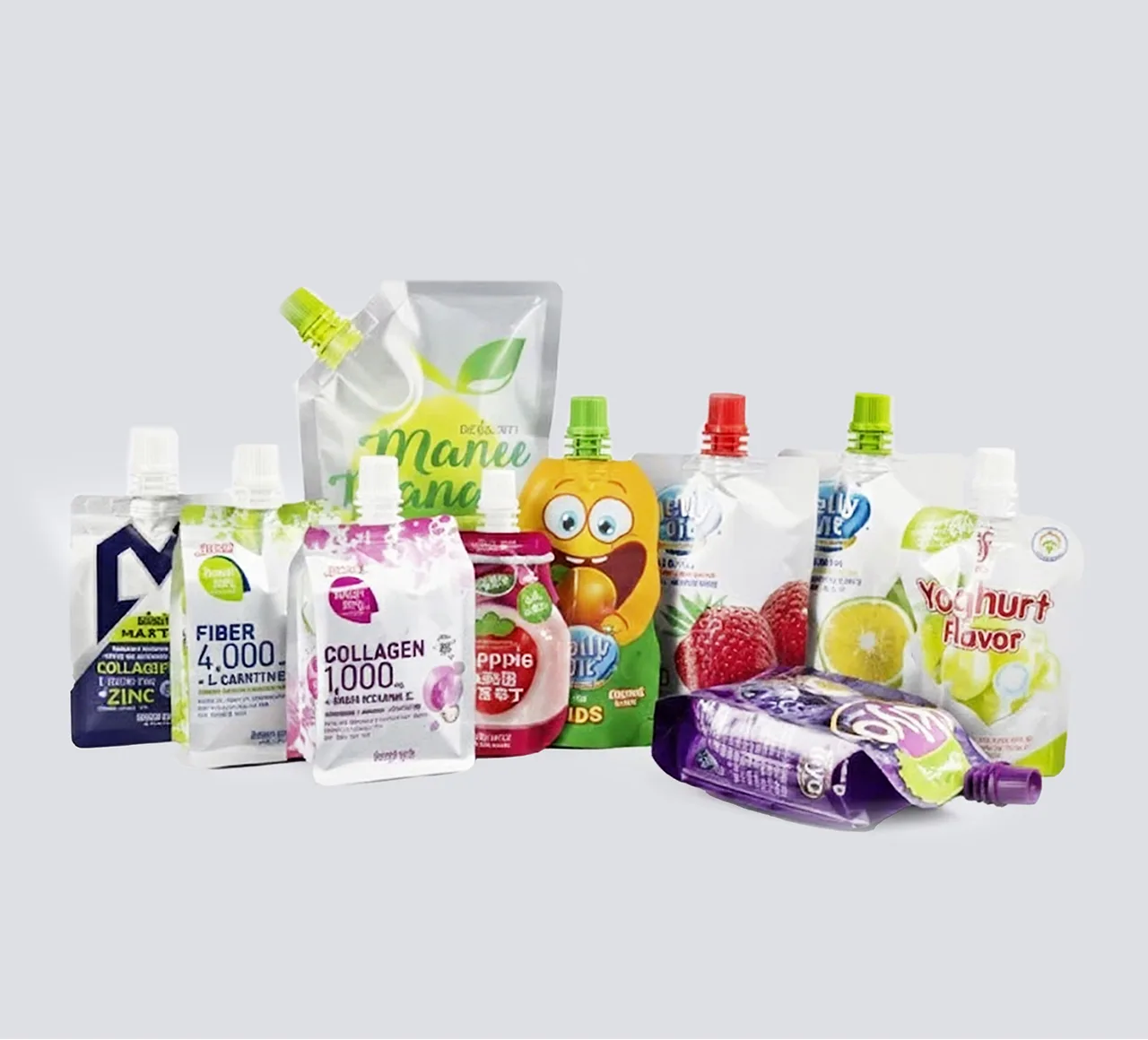

Beverage Packaging
Typical products: fruit juice, energy drinks, functional beverages, dairy alternatives
Advantages
- High-flow performance: Smooth sipping or pouring for low-viscosity liquids.
- Hot-fill compatibility: Proper material and seal design tolerate pasteurization.
- Tamper-evident options: Tamper bands and breakaway features are available.
- Portability: Lightweight pouches with a spout cap support on-the-go use.
Recommended sizes
| Beverage Type | Recommended Diameter | Reason |
|---|---|---|
| Kids’ juice pouches | 8.6 mm | Controlled sip size for children |
| Standard beverage pouches | 10 mm | Smooth, consistent flow for adult consumers |
| High-viscosity drinks (smoothies) | 13–16 mm | Prevents clogging; supports pulpy content |
Design notes: balance opening torque for one-hand use vs leak resistance; validate film weld strength around the spout seat.

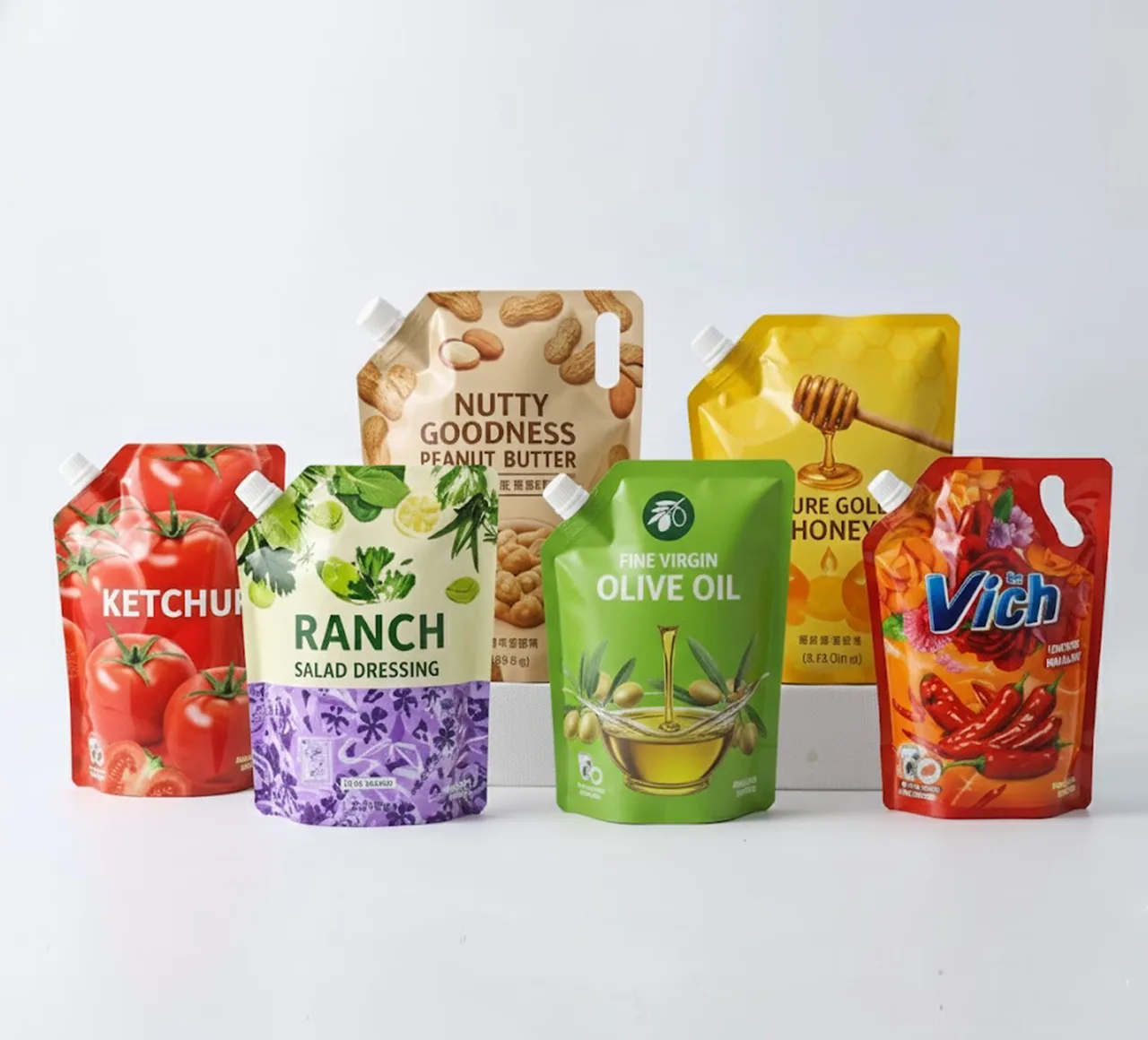

Sauce Packaging
Typical products: ketchup, mayonnaise, salad dressing, cooking sauces
Advantages
- Viscosity adaptability: Larger diameters and internal geometries reduce clogging.
- Precision dispensing: Portion control for cooking and table service.
- Refill use cases: Enables restaurant and household refill systems.
Recommended sizes
| Sauce Type | Recommended Diameter | Reason |
|---|---|---|
| Thin sauces (soy, vinaigrette) | 8.6–10 mm | Controlled pour, drip reduction |
| Medium viscosity (ketchup) | 13 mm | Balanced squeeze and flow |
| Thick sauces (mayonnaise) | 16 mm | Anti-clogging; easier extrusion |
Design notes: test shear and extrusion behavior for shear-sensitive formulations; consider tamper bands for packaged foods.

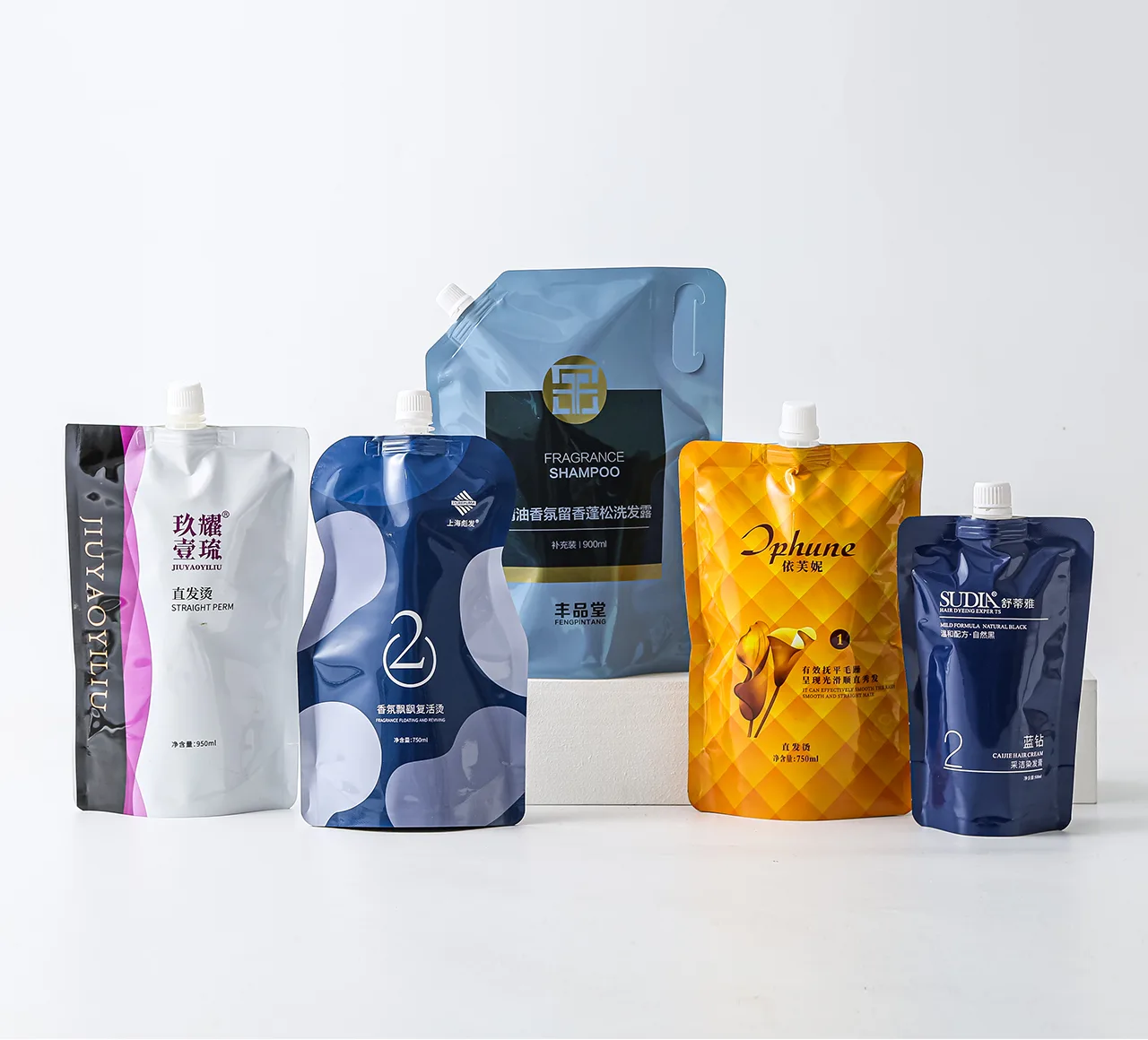

Cosmetic Packaging
Typical products: serum refills, liquid foundation, hair treatments, gel products
Advantages
- Hygienic dispensing: Reduces contamination risk for high-value formulas.
- Precise flow control: Critical for premium positioning and dose accuracy.
- Aesthetic customization: Color, finish, and integrated applicators (brushes, wands).
- Small-diameter precision: Micro-dosing options for concentrated products.
Recommended sizes
| Cosmetic Type | Recommended Diameter | Reason |
|---|---|---|
| Facial serums | 5–8.6 mm | Micro-dispensing for high-value formulas |
| Liquid foundation | 8.6–10 mm | Controlled but visible dispensing |
| Hair masks / creams | 13 mm | Medium viscosity control for easier application |
Design notes: use cosmetic-grade resins; test for migration, odor, and compatibility with fragrances and oils. For eyelash or mascara-style applicators, integrate brush retention features and anti-dry seals.
Technical Factors Influencing Final Spout Cap Choice
- Product viscosity: primary input for orifice diameter and internal geometry.
- Filling method: hot-fill vs cold-fill impacts material and seal tolerance.
- User interaction: single-hand use, child safety, or professional dosing change torque and thread spec.
- Transport conditions: long shipping cycles require higher torque and tamper features.
- Recyclability & compliance: mono-material designs ease recycling but constrain material choices.
Conclusion
A spout cap is not a one-size-fits-all component. Diameter, flow path, material, and thread design must be selected and validated against formulation, pouch construction, and filling-line constraints. Use the size recommendations above as starting points; proceed to prototype tooling and torque/leakage tests before finalizing. For OEM customization, provide expected viscosity, pouch film specs, and fill conditions to obtain an accurate mold design and prototype recommendation.

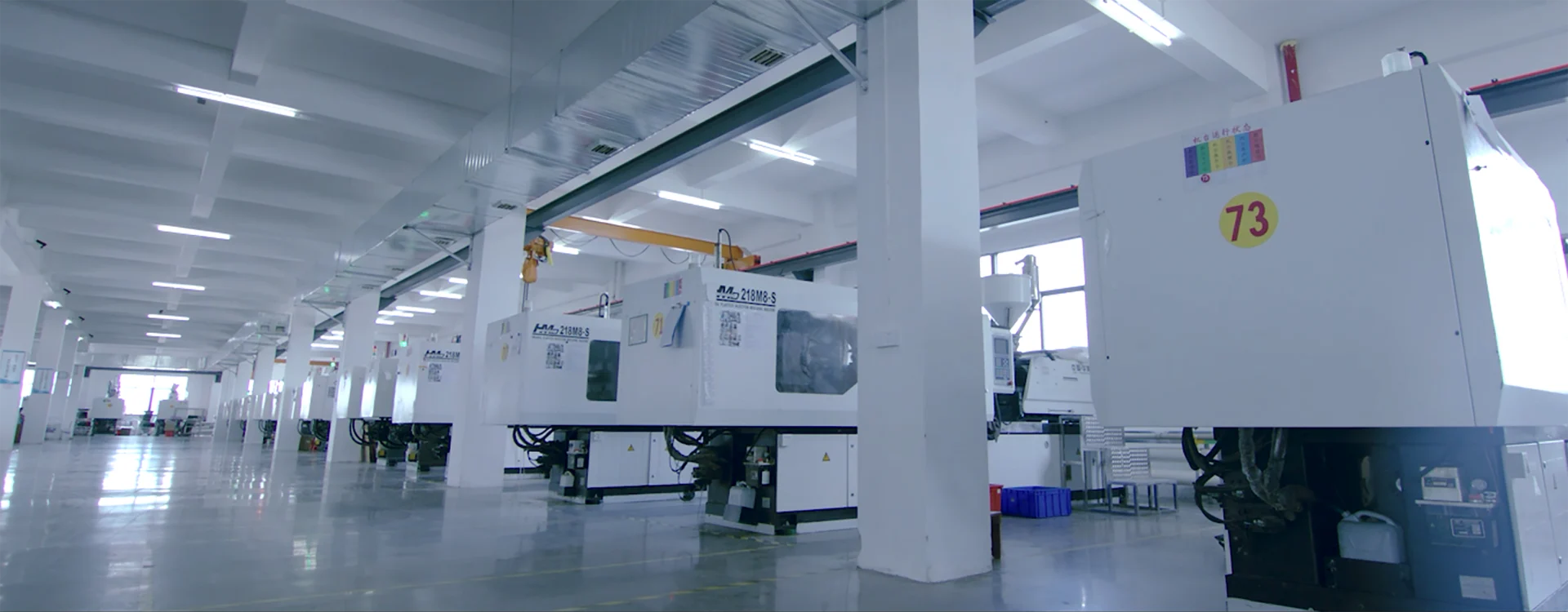

About Sanruan
Sanrun operates as a dedicated spout cap manufacturer focused on provide high-standar plastic spout caps for flexible packaging. Production runs follow controlled molding parameters and torque inspection standards to ensure dimensional consistency, sealing stability, and batch-to-batch reliability.
Serving pouch converters and brand owners, Sanrun develops spout cap OEM solutions covering diameter options, tamper-evident structures, color matching, and resin selection for personal care, beverage, sauce, and cosmetic applications.
With in-house tooling support and scalable capacity, we can deliver a stable supply and application-specific customization tailored to B2B procurement and filling-line requirements.
